ASETSM Apple Peeler
The ASETSM-E apple peeler is an easy to use apple peeling machine made to peel, core, wedge, and slice all types of apples. The stainless steel and anodized aluminum design makes the system easy to maintain. Core, peel and cut products are kept separate.
The ASETSM-E unit can yield up to 9 apples per minute and 155 to 245 lbs. per hour. With a simple change of blade combinations it can produce thin slices for pastries, wedges for pies, or chunks for salads.
- for bakeries
- for industrial kitchens
- for delicatessens
- for patisseries
- for fruit drying operations
- for canning factories
- for apple orchards
Effortless Operation, Exceptional Output:
- Peel, Core, Wedge, and Slice: This all-in-one machine expertly peels, cores, wedges, and slices apples, streamlining your workflow and saving valuable time.
- High-Volume Production: Achieve impressive output with a capacity of up to 12 apples per minute and 155 to 245 lbs. per hour, significantly increasing your production capabilities.
- Clean and Organized Processing: The intelligent design keeps core, peel, and cut products separate, minimizing waste and simplifying cleanup.
Unmatched Versatility:
- Customizable Cutting Options: Easily adapt to your specific needs with simple blade changes. Produce thin slices for pastries, wedges for pies, or chunks for salads, all with one machine.
- Handles All Apple Varieties: The ASETSM-E is designed to process all types of apples, ensuring consistent results regardless of size or variety.
Key Features:
- Durable Stainless Steel and Anodized Aluminum Construction
- High-Efficiency Processing: Up to 12 Apples/Minute, 155-245 lbs./Hour
- Separate Output for Core, Peel, and Cut Products
- Interchangeable Blades for Versatile Cutting Options
- Easy to Clean and Maintain
Invest in the ASETSM-E Apple Peeler and experience the difference in efficiency, quality, and versatility. Contact us today to learn more and request a quote!
| Capacity | Up to 9 apples / min. |
| Width | 12 Inches |
| Depth | 26 inches |
| Height | 16 inches |
| Electrical | 110V single phase standard, or 230V 3 phase available |
| Amps | 2.5 (230V), 5.2 (110v) |
| Driving Power | 1/4 HP |
| Total Weight | 66 lbs. |
- Apples are selected by size, not variety.
- Minimum apple diameter: 1.18 in. (30 mm)
- Maximum apple diameter: 3.35 in. (85 mm)
- Maximum apple length: 3.15 in. (80 mm)
- Apples should be reasonably round and capable of being securely held by the fruit support.
- The machine can process many apple varieties provided the fruit falls within the specified size range.
- Selection should be based on apple dimensions and shape rather than variety name.
- Apple slicing capability

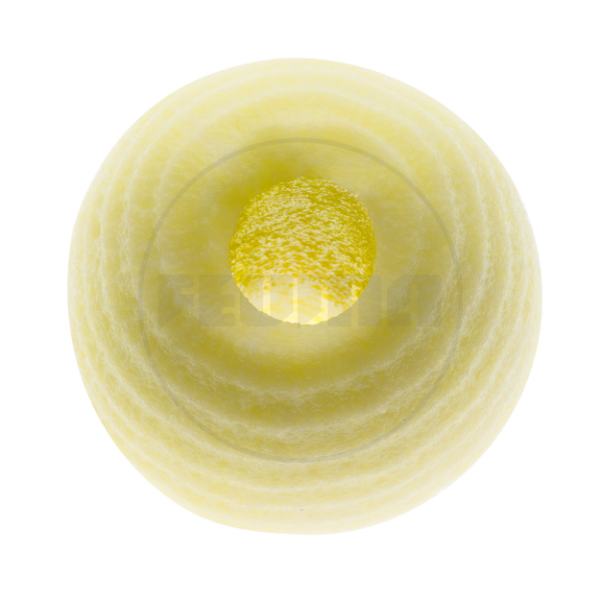

- Peel, slice, and core in one operation
- Peel, slice, core, and segment apples in one operation

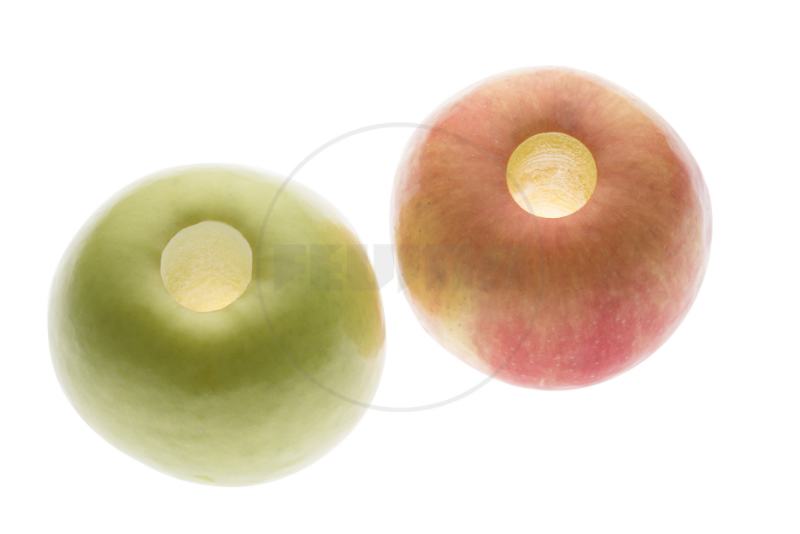

- Apple peeling/coring machine
- Transparent safety protection cover
- Separate Cylinder E1 (for use with scraping fork)
- Separate Cylinder E2 (for use without scraping fork)
- Coring tube small 542715 (20mm 90.79 in.)
- Discharge tube
- Fruit supports large (300732)
- Scraping fork
- Machine foot/support foot
- Cleaning pestle
- 5.5 mm screwdriver
- Tension springs
- Operating manual and test protocol
- Coring tubes are available in:
- 20 mm (0.79 in.)
- 23 mm (0.91 in.)
- 27 mm (1.06 in.)
- Fruit support sizes are available in:
- 300457 short 5 cm (2.0 in.)
- 300732 large 7.62 cm (3.0 in.)
- Fan-type knife sets are available to produce slices from:
- 3.5 mm (0.14 in.)
- up to 30 mm (1.18 in.) thick
- 2 pieces
- 3 pieces
- 4 pieces
- 6 pieces
- 8 pieces
- 10 pieces
- 12 pieces
- 16 pieces
- 24 pieces
- Typical production capacity is 70–100 kg/hr (154–220 lb/hr) depending on product and operator. Approximately 600 apples/hour. The machine has a cycle time of 6 seconds see page 62 of the opperations manual.
- Width: 11.8 in. (300 mm)
- Height: 15.7 in. (400 mm)
- Length: 30.7 in. (780 mm)
- Weight: 66 lb (30 kg)
Due to the size and weight of the machine, we will not ship UPS or USPS. We will use an LTL freight company of your choice. Freight costs must be quoted at the time of order.
Accessories

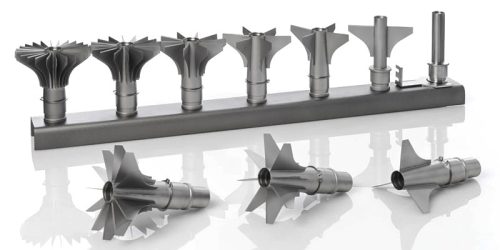

Dividing Star

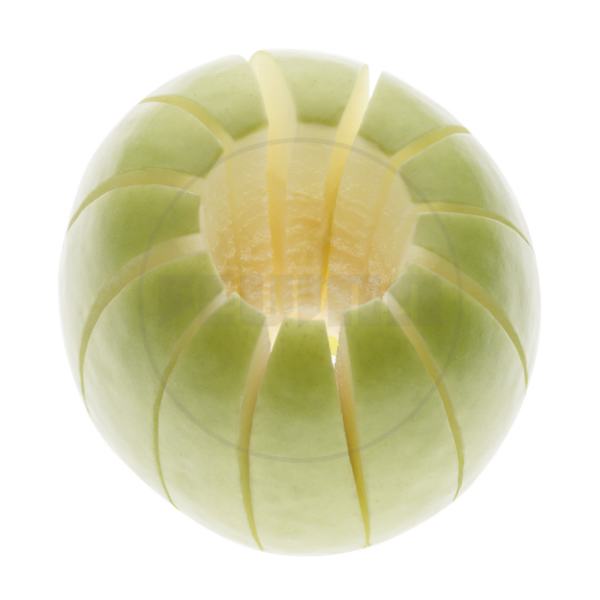

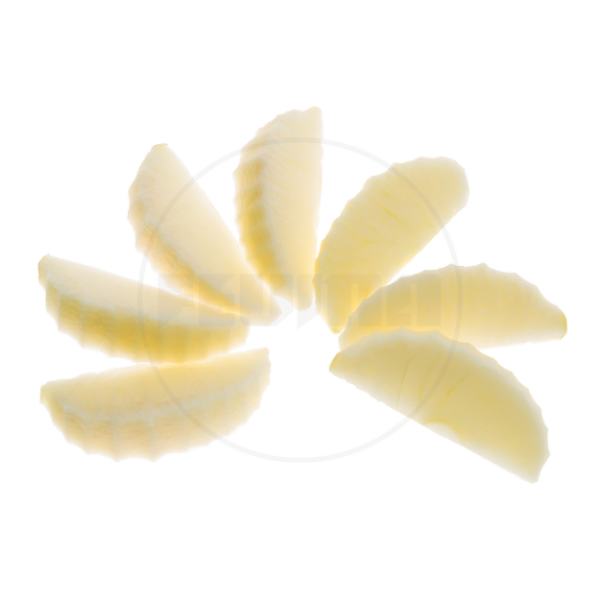

We also offer 9 different dividing stars that allow you to split apples as you like, ranging from 2 to 24 pieces.

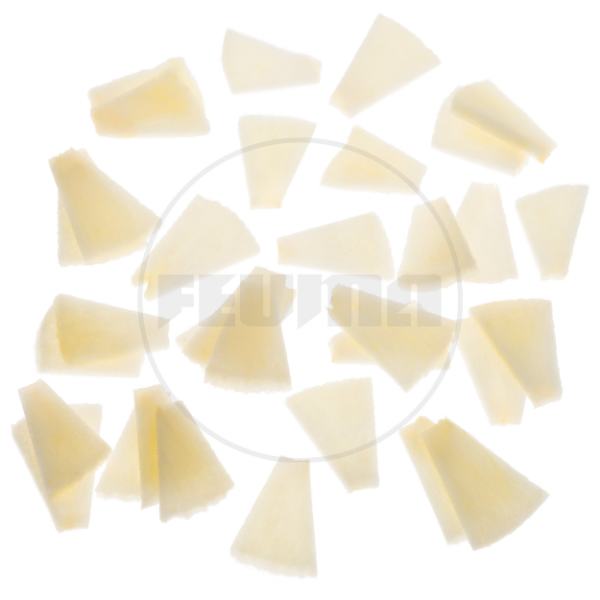

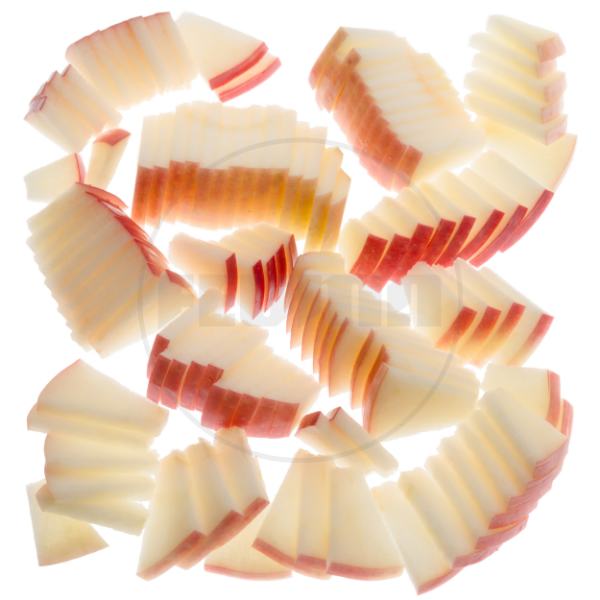

A fan-type knife in combination with a dividing star will cut the apple into small pieces.
Can be divided in 2 / 3 / 4 / 6 / 8 /10 / 12/ 16 / 24 parts

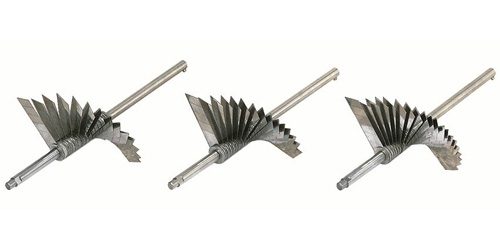

Fan-Type Knife

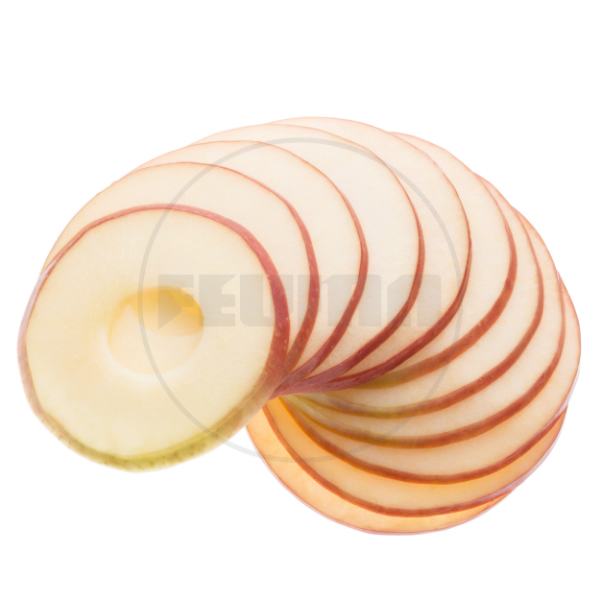

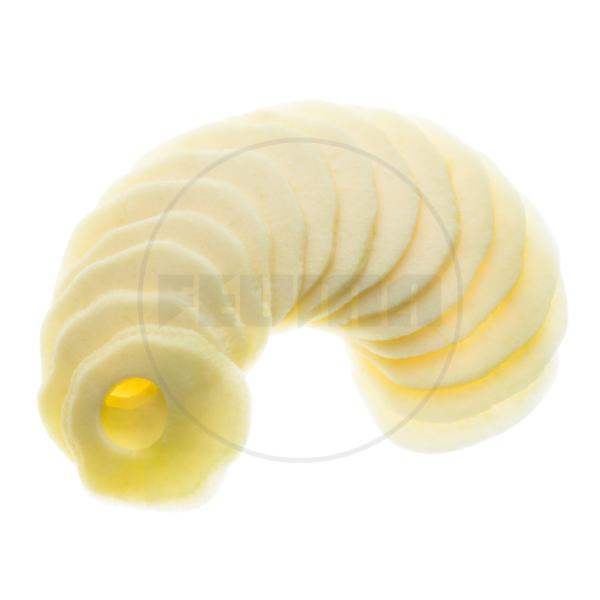

FEUMA offers a wide selection of fan-type knifesthat allow you to obtain slices of various thickness, from 3.5 mm to 30 mm.
Options slice thikness 3.5 mm / 4.5 mm / 5.5 mm / 7.5 mm / 9.0 mm / 10 mm / 14 mm / 20 mm / 30 mm
Separation System
- seperate the fruit and shell
- easy assembly – positioning under the apple processing machine
- compact stainless steel design
